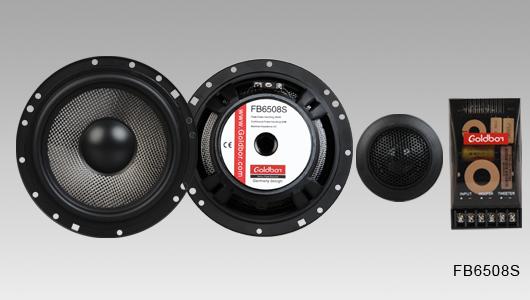

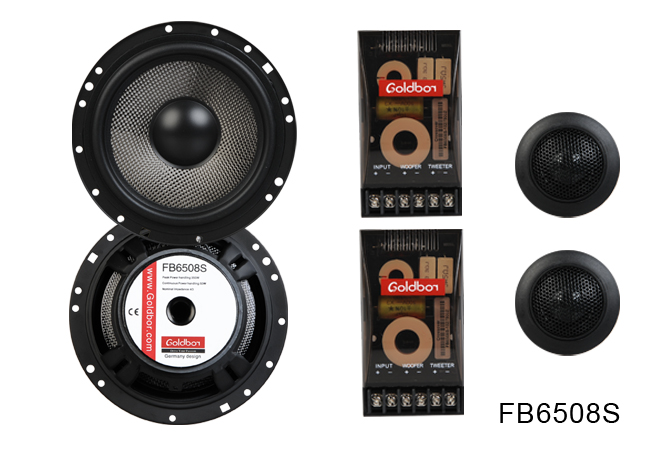

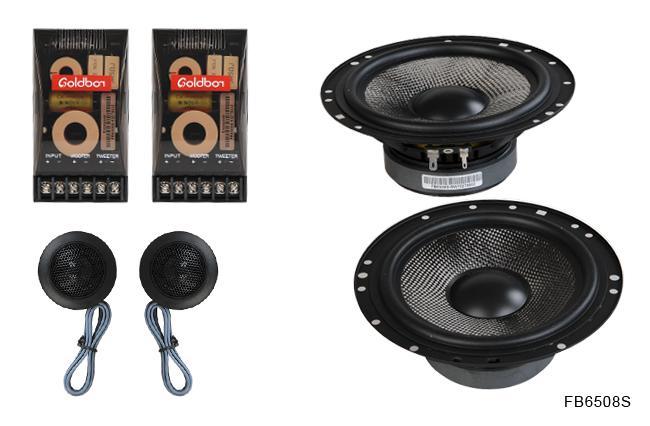

FB6508S
6½" Component Speaker Package
350 Watts Max Power (50 Watts Nominal)

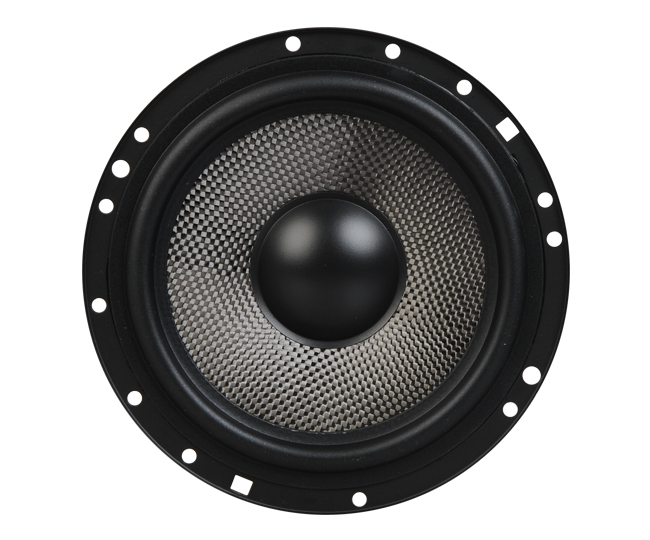

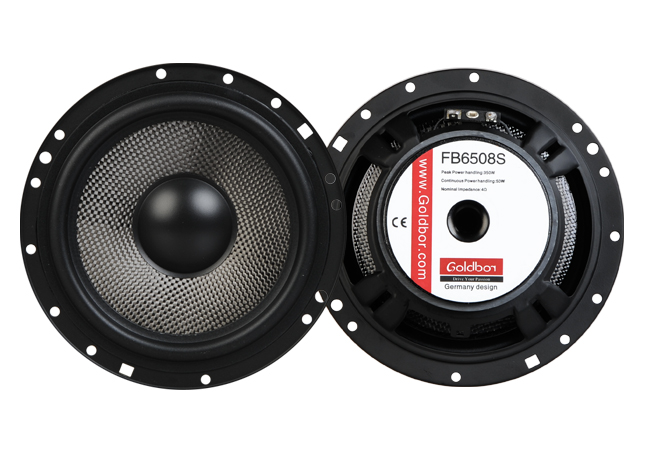

6½" (165mm) mid/woofer

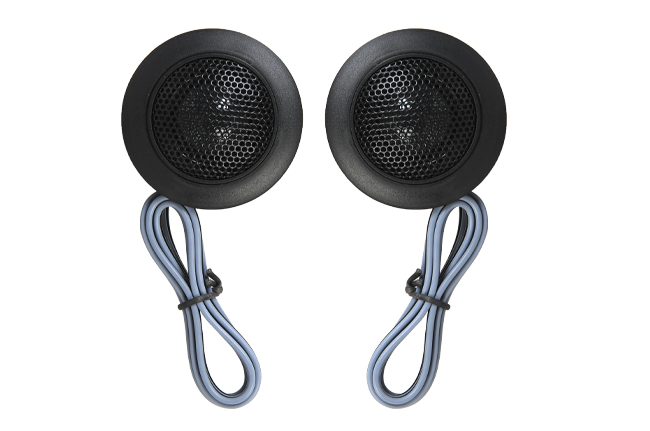

1" (25mm) Silk Dome Tweeter
Revolutionary Basalt Fiber Weave IMX Speaker Cones Provide Strength
and Durability for Amazing Sound
High-Quality Crossover Network
Price: $359.00
| Type | 6.5" component system |
| Driver complement | 6.5" (165mm) mid/woofer |
| Tweeter complement | 1" (25mm) Silk Dome Tweeter |
| Peak Power handling | 350W |
| Continuous Power handling | 50W |
| Nominal Impedance | 4Ω |
| Frequency response | 30Hz-25kHz |
| Sensitivity | 93dB |
| Installation dimensions(in mm) | |
| Woofer | |
| Max Diameter . | Φ166 |
| Mounting hole min. | Φ138 |
| Mounting Depth min. | Φ59 |
| Tweeter | |
| Max Diameter . | Φ58 (include outer covering) |
| Mounting hole min. | Φ48 (include outer covering) |
| Mounting Depth min. | 17 (include outer covering) |
| Mounting hole | Φ42 (only tweeter) |
| Mounting Depth | 23 (only tweeter) |

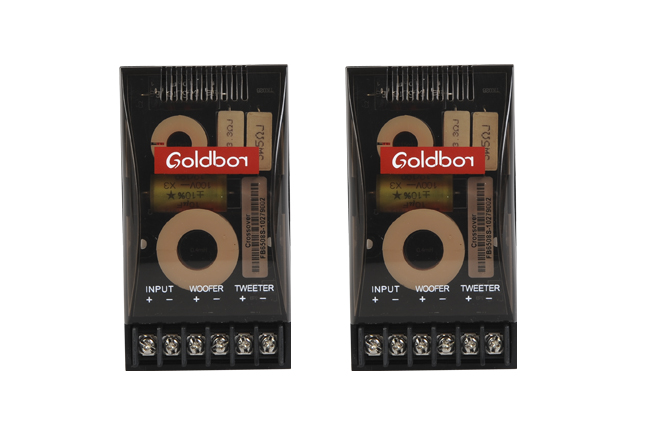

| Crossover | |
| Dimensions | 120(L)x65(W)x32(H) |
